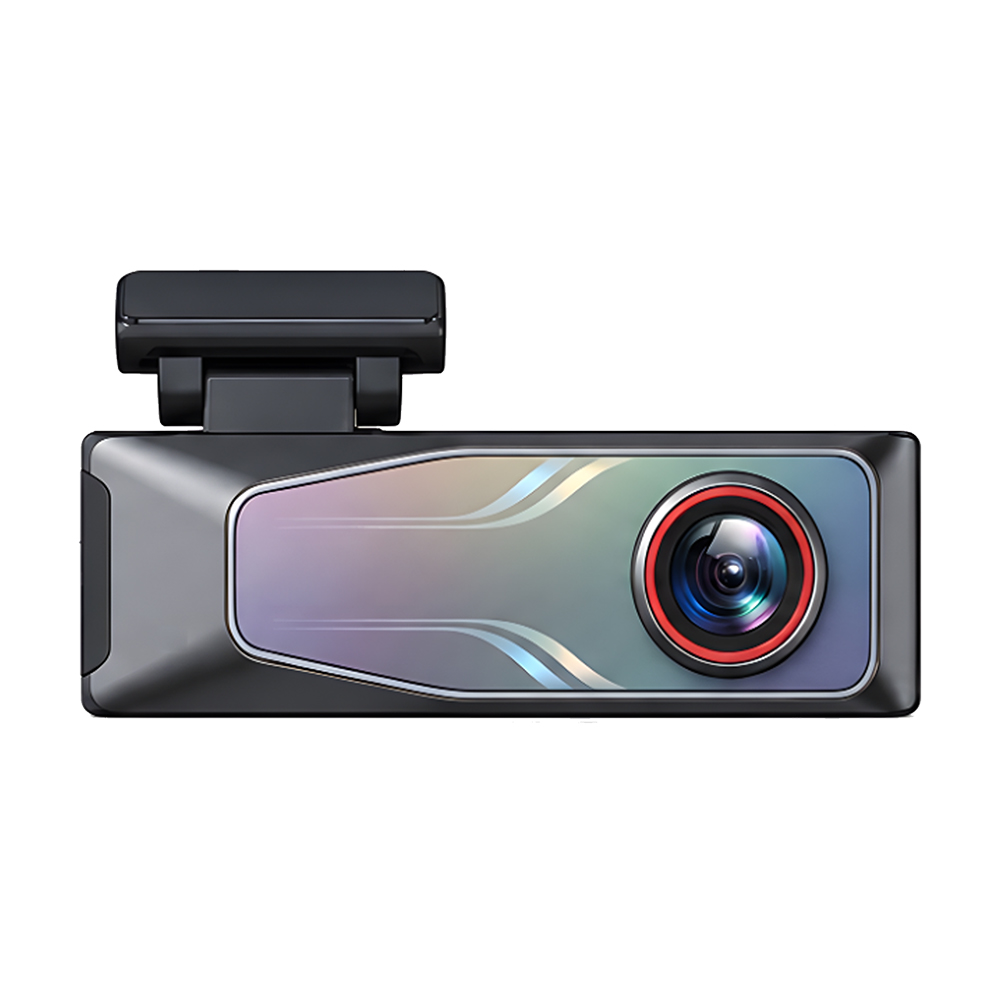

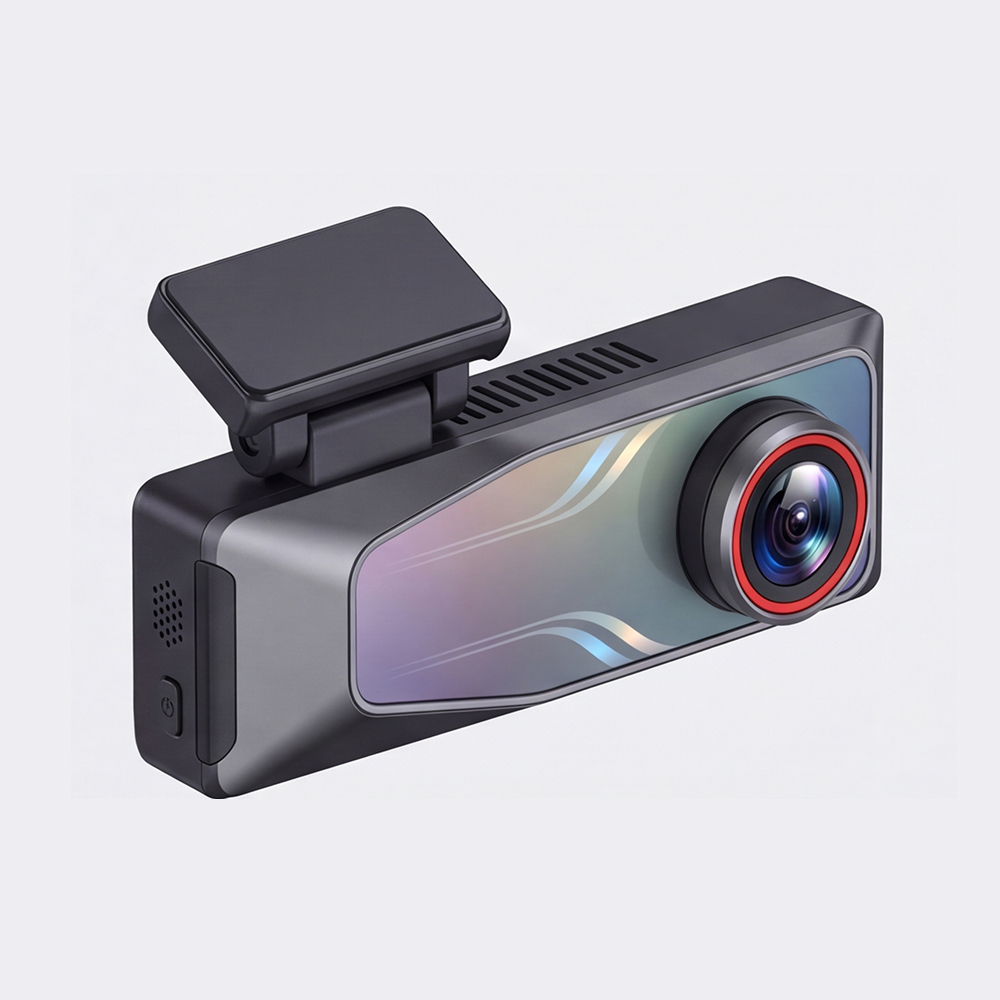

The STC-8774 is a premium triple-channel dash cam designed to provide complete front, cabin, and rear vehicle coverage. Equipped with a 4K UHD front camera, detachable interior camera, rear recording camera, built-in WiFi, GPS tracking, and a 3.19-inch IPS display, it delivers comprehensive driving protection and evidence collection for both private and commercial vehicles.
Powered by the Yizhi 230D platform and GC4653 image sensor, the STC-8740 combines ultra-high-definition recording, wide-angle coverage, parking surveillance, collision protection, and intelligent APP connectivity in a single solution. It is suitable for ride-hailing services, fleet operators, taxis, logistics vehicles, and drivers who require complete vehicle monitoring.
| Item | Specification |
| Model | STC-8774 |
| Processor Platform | Yizhi 230D |
| Image Sensor | GC4653 |
| Front Camera | 4K UHD |
| Interior Camera | 1K |
| Rear Camera | 1K |
| Camera Channels | Triple Camera |

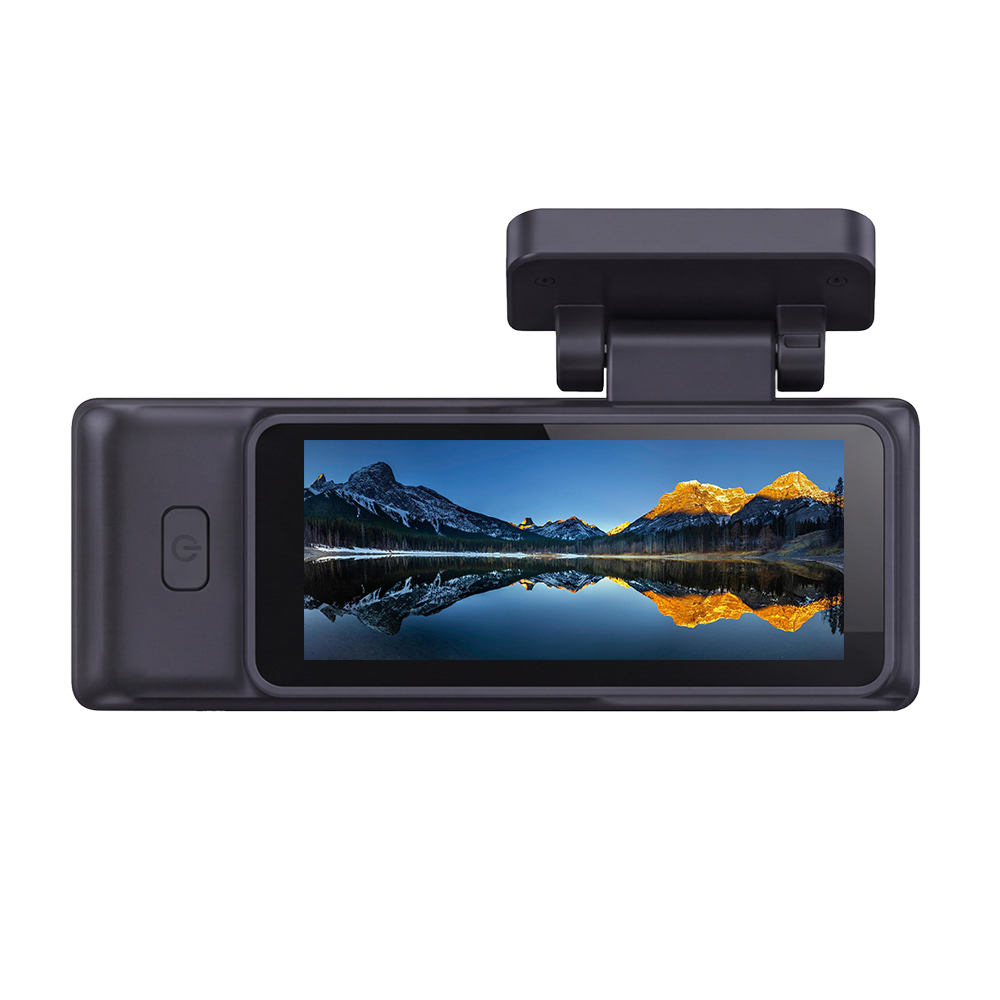

| Display | 3.19" IPS Screen |
| Viewing Angle | 170° Wide Angle |
| WiFi | Built-In |
| GPS | Built-In |
| Parking Monitor | Supported |
| G-Sensor | Supported |
| Loop Recording | Supported |
| Night Vision | Supported |
| Storage | Up to 256GB |
| Power Supply | Cigarette Lighter Power |
The STC-8774 supports simultaneous recording from three cameras:
4K UHD Front Camera
1K Interior Cabin Camera
1K Rear Camera
This triple-channel system captures the road ahead, vehicle interior, and rear traffic conditions at the same time, providing comprehensive evidence during accidents, disputes, or security incidents.
The interior camera features a detachable design and supports 360° rotation. Users can adjust recording angles according to vehicle layouts and monitoring requirements, making it suitable for taxis, ride-hailing vehicles, training vehicles, and commercial transportation applications.
The integrated WiFi function allows users to connect directly to the dash cam through a smartphone APP. Drivers can view live footage, download videos, change settings, and share recordings without removing the memory card.
Built-in GPS records vehicle location, speed, route history, and driving information during every trip. Route playback provides additional driving evidence and helps users review travel records when needed.
The STC-8774 supports parking surveillance to continue protecting vehicles even when the engine is off. The system monitors unusual activity and records important events during parking periods.
